 KWIII单轨小车
|
 产品详细说明： |
| KWIII单轨小车 |
|

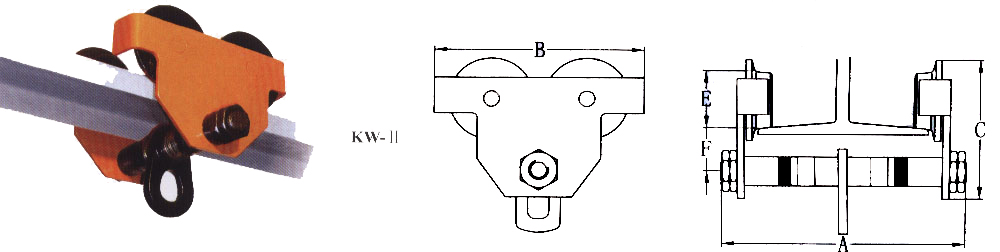

KW-II手推单轨小车
|
Model |
KW005A |
KW010A |
KW020A |
KW030A |
KW050A |
KW100A |
|
Rated capacity |
(mm) |
0.5 |
1 |
2 |
3 |
5 |
10 |
|
Test load |
(kn) |
7.35 |
14.71 |
29.42 |
44.13 |
61.29 |
122.58 |
|
Min.radius of curve |
(m) |
1 |
1 |
1.1 |
1.3 |
1.4 |
1.7 |
|
Dimensions(mm) |
A |
230 |
301 |
315 |
334 |
355 |
414 |
|
B |
218 |
275 |
305 |
340 |
380 |
389 |
|
C |
155 |
183 |
205 |
254 |
292 |
363.5 |
|
E |
67 |
80 |
100 |
111 |
122 |
152 |
|
F |
48.5 |
54 |
46 |
76.5 |
87 |
123 |
|
I-beam recommended |
(mm) |
50-152 |
64-203 |
88-203 |
100-203 |
114-203 |
125-210 |
|
Net weight |
(kg) |
7.1 |
12.8 |
18.8 |
33.7 |
50.7 |
88 |
|
Gross Weight |
(kg) |
7.8 |
13.9 |
19.9 |
35.1 |
56.4 |
95.0 |
|
Packing measurement(L×W×H) |
(cm) |
25×24×17.5 |
32×30×20.5 |
33.5×32.5×22.5 |
36×36×28 |
45×25×35 |
50×26×44 |
KWIII手拉小车
|
Model |
KW010B |
KW020B |
KW030B |
KW050B |
KW100B |
|
Rated capacity |
(mm) |
1 |
2 |
3 |
5 |
10 |
|
Test load |
(kn) |
14.71 |
29.42 |
44.13 |
61.29 |
122.58 |
|
Min.radius of curve |
(m) |
1 |
1.1 |
1.3 |
1.4 |
1.7 |
|
Dimensions(mm) |
A |
360 |
364 |
402 |
420 |
480 |
|
B |
275 |
305 |
340 |
380 |
389 |
|
C |
183 |
205 |
254 |
292 |
363.5 |
|
E |
80 |
100 |
111 |
122 |
152 |
|
F |
54 |
46 |
76.5 |
87 |
123 |
|
I-beam recommended |
(mm) |
64-203 |
88-203 |
100-203 |
114-203 |
125-210 |
|
Net weight |
(kg) |
17.0 |
23.5 |
38.7 |
55.7 |
93 |
|
Gross Weight |
(kg) |
18.1 |
24.7 |
40.2 |
56.4 |
102.0 |
|
Packing measurement |
(cm) |
38×30×20.5 |
38×32.5×22.5 |
42×36×28 |
45×37×35 |
50×40×44 | | |
|
|
