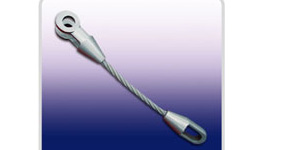

 开闭式浇铸索具
|
 产品详细说明： |
开闭式浇铸索具
| 型号 |
钢丝绳直径(mm) |
A(mm) |
B(mm) |
C(mm) |
F(mm) |
M(mm) |
N(mm) |
A1(mm) |
B1(mm) |
C1(mm) |
M1(mm) |
N1(mm) |
| TKBJ06 |
φ6-φ7 |
23 |
39 |
40 |
16.5 |
33 |
19 |
14 |
14 |
57 |
40 |
22 |
| TKBJ08 |
φ8-φ10 |
21 |
45 |
44 |
20.5 |
38 |
22 |
18 |
16 |
67 |
43 |
25 |
| TKBJ11 |
φ11-φ13 |
25 |
53 |
51 |
24.5 |
48 |
27 |
22 |
18 |
75 |
51 |
30 |
| TKBJ14 |
φ14-φ16 |
32 |
60 |
64 |
29.5 |
57 |
33.5 |
25 |
21 |
84 |
67 |
36 |
| TKBJ18 |
φ18 |
38 |
70 |
76 |
34.5 |
67 |
40 |
32 |
27 |
103 |
76 |
42 |
| TKBJ20 |
φ20-φ22 |
44 |
84 |
89 |
40.5 |
80 |
45 |
38 |
32 |
121 |
92 |
48 |
| TKBJ24 |
φ24-φ26 |
51 |
95 |
102 |
50 |
95 |
56 |
45 |
35 |
137 |
105 |
58 |
| TKBJ28 |
φ28 |
57 |
107 |
117 |
56 |
105 |
62 |
50 |
38 |
152 |
114 |
65 |
| TKBJ32 |
φ32-φ36 |
64 |
124 |
127 |
63 |
122 |
74 |
55 |
41 |
168 |
135 |
71 |
| TKBJ38 |
φ38 |
76 |
136 |
152 |
69 |
137 |
80 |
65 |
50 |
202 |
135 |
81 |  | | |
